JACKOBOARD Aqua Drain Systems
Suitable for Aqua, Aqua Quadrant & Aqua Flat Shower Elements.

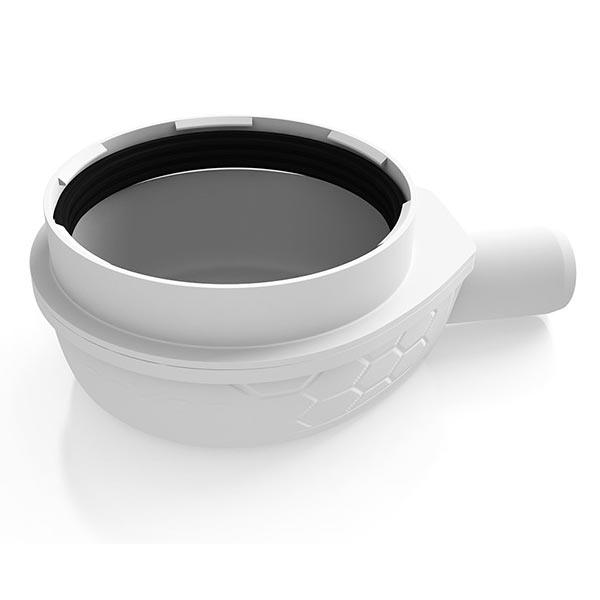

Horizontal drain:
- High-quality designer grate in solid brushed stainless steel
- Grate frame height adjustable from 3 to 18 mm
- Super-flat drain with a minimum installation height including shower element of only 97 mm
- High drainage rate 0.9 l/s
- Water trap height 50 mm
- DN 50
- Drain nozzle made of glueable ABS plastic
Vertical drain:
- High-quality designer grate in solid brushed stainless steel
- Grate frame height adjustable from 3 to 18 mm
- High drainage rate 0.9 l/s
- Water trap height 50 mm
- DN 40/50
- Drain nozzle made of glueable ABS plastic
Use Product Enquiry tab below to find out more.
Always the right choice: Horizontal and Vertical drain systems.
JACKOBOARD® Aqua drain systems are the matching accessory for JACKOBOARD® Aqua and Aqua Flat shower elements. There are two drain systems to choose from: a horizontal drain system with a super-flat drain and a minimum installation height of just 97 mm (including shower element) or a vertical drain system. Both drain systems include a high quality solid brushed stainless steel grate with a high drainage rate of 0.9l/s.
Product characteristics – JACKOBOARD® Aqua drain systems:
- High quality designer grate made of solid brushed stainless steel
- Grate frame with adjustable height range 3–18 mm
- Horizontal, extra flat drain with a minimum installation height (including shower element) of just 97 mm
- High drainage rate of 0.9 litres/sec
- Water trap height 50 mm
- DN 50 (horizontal), DN 40/50 (vertical)
- Drain nozzle made of glueable ABS plastic
- Fire safety configuration also available on request
Benefits – JACKOBOARD® Aqua drain systems:
- Perfectly matched to the technical specifications of JACKOBOARD® Aqua shower elements.
Ideal application:
- For the fast and precision-fit installation of a drain system that is perfectly matched to all JACKOBOARD® Aqua shower elements.
