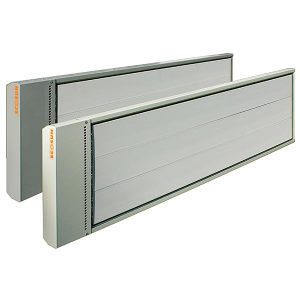

ECOSUN S+ High Output Space Heater
Ecosun infrared panels are an ideal way of providing thermal comfort in commercial and industrial buildings. They are specifically designed for high level mounting.

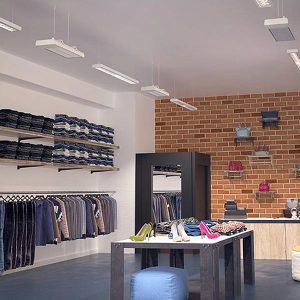

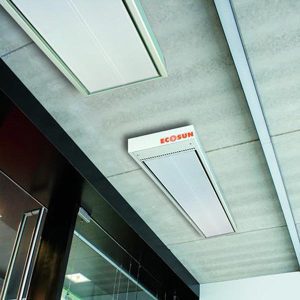

They can be horizontally ceiling mounted with an auxilliary frame or suspended on drop rods or chains. They are only 60mm deep and typical applications include large volume spaces where conventional warm air convection heating systems would be uneconomic. These include ; Supermarkets, Gymnasiums, Showrooms, Factories and Warehouses.
Use Product Enquiry tab below to find out more.
Features:
- Localised Heating- only warm the area required e.g. work stations
- Suspended or ceiling mounted. Ecosun radiant heat panels provide totally usable floor and wall space and reduce the risk of damage or
- Higher ventilation and air extract rates do not significantly effect the radiant performance of Ecosun panels which primarily warm the fabric of the heated area
- Gentle infrared heat results in improved comfort conditions at lower inside ambient temperature – providing comfort conditions at lower running costs
- Infrared heating does not cause air convection currents, therefore minimising dust movement and provides a clean, draft free environment
- Ecosun panels are constructed using a rod heating element encapsulated within a special aluminium extrusion profile. The surface area of the aluminium profile is treated with a silicating process which substantially increases its surface area and its ability to emit heat. The result is a high efficiency, low maintenance heater suitable for commercial and industrial environments
Specification:
- Attractive powder coated casing (RAL9002 off white) & grey radiating faceplate
- Fully insulated galvanised casing with class O foil backed 25mm thick insulation
- Ceiling mounting frame included in installation kit
- Heating panel surface temperature – approx 350 C
- Protection: Class1 , IP x 4, Cable gland to IP44
- Thermo crystal high emissivity heating panel
Installation
Due to the high power outputs Ecosun electric heating panels must be installed the following minimum distances from:
- Radiant surfaces (up to 260 C) 1000mm
- From top edge of panel 100mm
- Wall 1500mm Floor 3500mm
